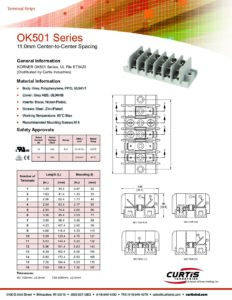

OK501 Series
OK501 Series Quick-Connect Terminal Blocks
The OK501 Series is a versatile quick-connect terminal block designed for the power and mains connection of electrical equipment in appliance, lighting, HVAC, and industrial applications. Featuring combinations of straight, 45° and right-angle 0.250″ (6.35 mm) quick-connect tabs and screw-clamp termination options, the OK501 series provides engineers with a flexible solution for a wide range of wiring and packaging requirements.
Available in lengths up to 16 poles and numerous configurations, the OK501 series can be customized to meet specific application needs while maintaining high connection reliability and efficient use of panel space. The quick-connect terminals are designed for use with standard 0.250″ receptacles, allowing rapid assembly and simplified field service.
Multiple terminal tabs may be combined within a single pole, providing convenient power distribution while minimizing wiring complexity. The modular construction enables a high packing density, allowing designers to maximize functionality within compact equipment layouts.
Key Features
- 11 mm pitch terminal spacing
- UL rated 300Vac/16A (VDE/CE rated 450Vac/24A) per pole.
- Up to 16 poles, each uniquely configurable
- Industry-standard 0.250″ (6.35 mm) quick-connect tabs
- Various single and double tab, screw connection, and jumper options
- Suitable for appliance, lighting, HVAC, and industrial equipment applications
- Designed for efficient OEM assembly and field serviceability
